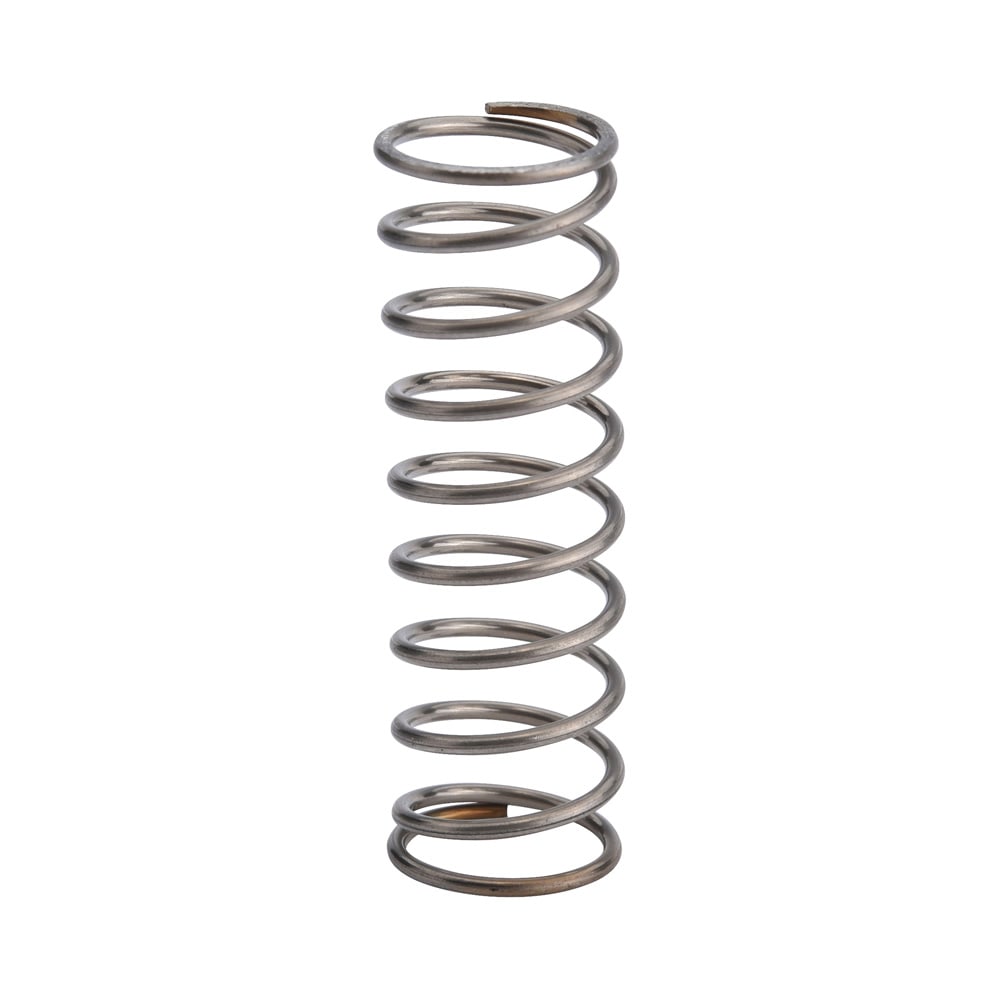

Round Wire Coil Springs, Defection O.D. Referenced, Stainless Steel, Light Load (DC-UL)
▼ Check FAQ of this product (6)
Brand : Dymex
From : ₹ 12.00 / Unit
Qty :
Days to Ship : 10 to 15 Days
Total Price : ₹ 12.00
Select part number to Quote Now
Product Description
| Property | Details |
|---|---|
| Product Name | Round Wire Coil Springs, Defection O.D. Referenced, Stainless Steel, Light Load (DC-UL) |
| Allowable Displacement (mm) | 2 - 24 |
| Allowable Load (Configurable Range) (N) | 0.26, 0.85, 1.51~4.50, 4.51~8.50, 8.51~16.00, 30.01~50.00, Up to 1.50 |
| Allowable Load P2 (N) | 0.98, 1.96, 2, 2.94, 3.9, 3.92, 5.9, 7.8, 9.8, 11.8, 13.7, 15.7, 17.7, 19.6, 23.5, 27 17.7, 29.4, 35.3, 47.1, 53 |
| End Face Condition | Grinding, Grinding Processing, Non-grinding Processing |
| Free Length L (mm) | 3 - 939.37 |
| Height H2 at Allowable Load (mm) | 3 - 36 |
| Inner Dia. D-2d (or D) (Ø) | 1.4 - 16.8 |
| Material | SUS304-WPB |
| Outer Dia. D (or D1) (Ø) | 0.98 - 20 |
| RoHS | 10 - 20 |
| Sales Package | Package, Single Item |
| Solid Length (mm) | 1.65 - 23.7 |
| Spring Constant (N/mm) | 0.5 - 9.8 |
| Total Number of Turns N | 4.1 - 32 |
| Wire Dia. (Ø) | 0.2 - 1.8 |
